Softener General Service by Sana Ventures

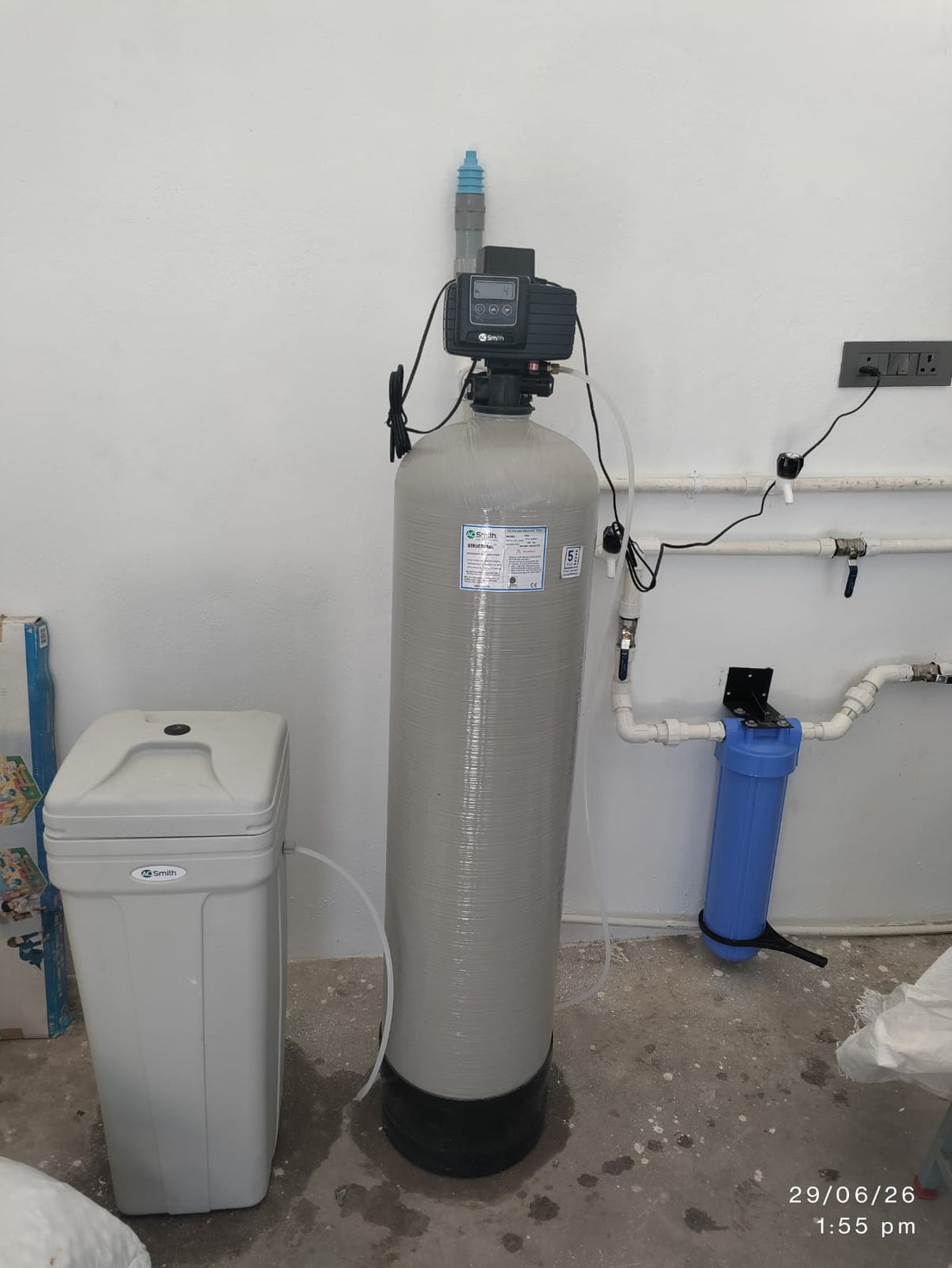

Sana Ventures successfully completed the general service of an A. O. Smith water softener system at the customer site. The service included inspection of the softener unit, checking the control valve, cleaning/replacing the filter cartridge, checking the brine tank condition, verifying the pipe connections, and ensuring smooth water flow through the system.
Hard water contains excess calcium and magnesium, which can cause scaling in pipelines, taps, bathrooms, geysers, heat pumps, washing machines, and other water-using appliances. A softener helps reduce hardness and provides better water quality for daily use.
Service Work Done
1. Jumbo Filter Cleaning
The jumbo filter was opened and cleaned manually. The filter cartridge had collected dust, sand, dirt, and suspended particles from the inlet water. Cleaning the jumbo filter helps improve water flow and protects the softener resin from unwanted impurities.
Image Suggestion:
Add the first photo showing the removed filter cartridge and blue jumbo filter housing.
Caption:
Jumbo filter cartridge removed for manual cleaning and inspection.
2. Manual Backwashing Completed
Manual backwashing was carried out to clean the softener system and remove accumulated impurities from the resin bed. Backwashing helps the softener work efficiently and improves the water softening process.
Benefits of manual backwashing:
- Removes dirt and sediments from the system
- Improves softener performance
- Helps maintain proper regeneration
- Supports longer resin life
- Keeps water flow smooth
3. General Service Work Done
The complete softener system was inspected, including the control valve, brine tank, salt level, pipe connections, filter housing, inlet and outlet valves, and drain line.
Service checklist completed:
- Jumbo filter cleaning
- Manual backwashing
- Brine tank inspection
- Softener valve checking
- Pipe and joint leakage inspection
- Water flow checking
- Hardness test before and after softening
- Final performance verification
Hardness Test Report
During the service, the hardness level was checked before and after the softening process.
| Water Condition | Hardness Level |
|---|---|
| Before Softening | 400 ppm |
| After Softening | 25 ppm |
The result clearly shows that the softening process is running properly, and the system is effectively reducing hardness from 400 ppm to 25 ppm.
