AO Smith Heat Pump Installation & Commissioning Successfully Completed
📍 Location: Vilankuruchi Road, Coimbatore
Sana Ventures successfully completed the installation and commissioning of an AO Smith Heat Pump Water Heating System at a residential property on Vilankuruchi Road, Coimbatore.
Site Installation

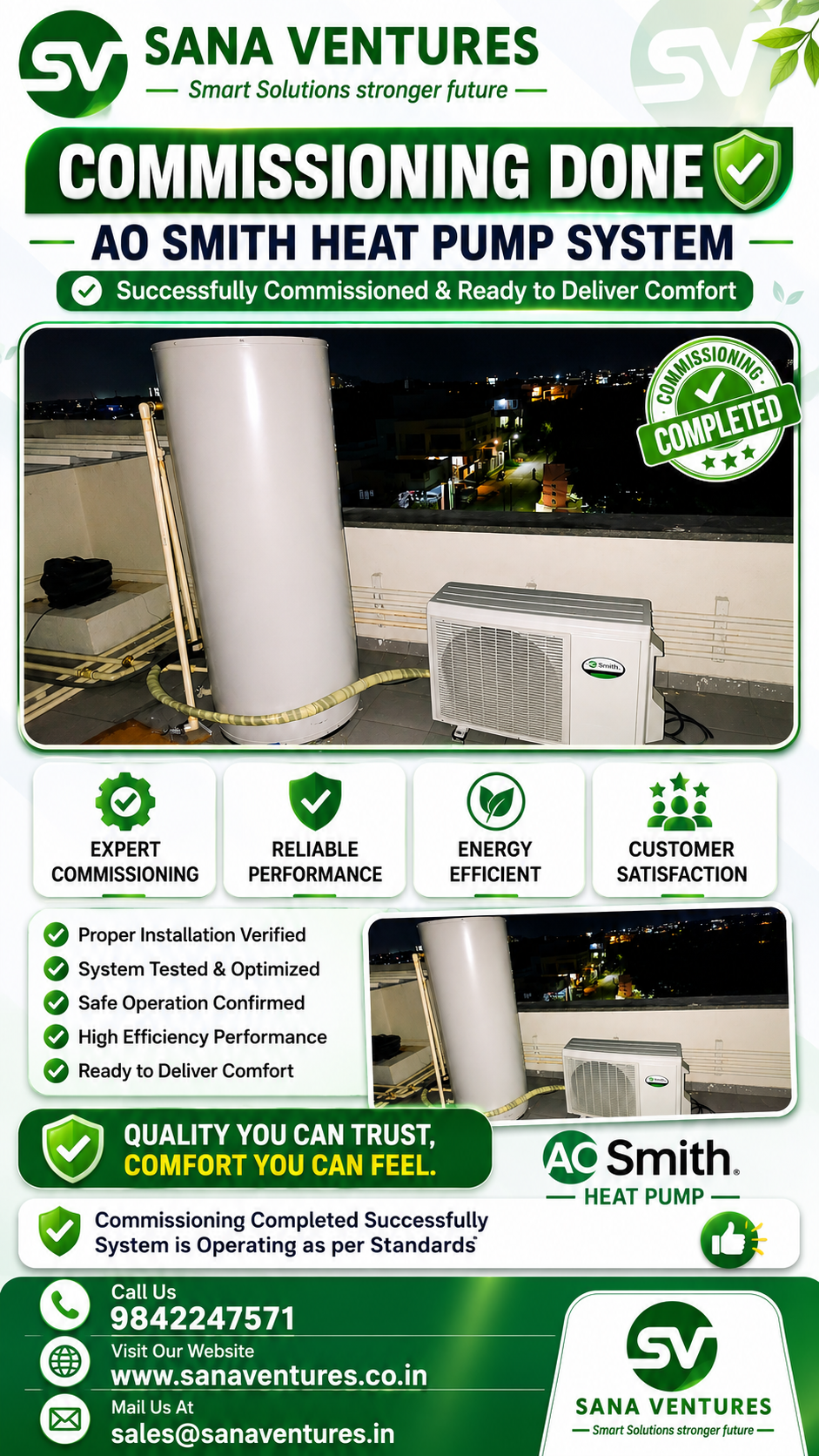

Following a detailed site assessment, our technical team installed the AO Smith Heat Pump outdoor unit and hot water storage tank at the designated rooftop location. The installation included:
• Positioning and securing the heat pump unit
• Installation of insulated hot water storage tank
• Water inlet and outlet plumbing connections
• Electrical power supply connections with safety protection
• Pipe insulation and routing for improved thermal efficiency
• Complete system integration and testing
Commissioning Procedure
After installation, a comprehensive commissioning process was carried out to ensure the system operates according to AO Smith standards.
Pre-Commissioning Checks
✔ Verification of plumbing and electrical connections
✔ Water filling and air purging
✔ Leak inspection of all joints and fittings
✔ Earthing and safety checks
System Start-Up & Performance Testing
The heat pump was powered on and monitored under operating conditions.
Recorded Performance Parameters
✅ Operating Current – 6.57 Amps
✅ Peak Current During Operation – 11.04 Amps
✅ Hot Water Temperature Achieved – 65°C
✅ Temperature Set Point – 65°C
✅ Operating Mode – Hybrid Turbo Mode
These readings confirm that the system is functioning efficiently and delivering the expected performance parameters.
Final Verification
✔ Water heating cycle completed successfully
✔ Compressor operation verified
✔ Safety controls tested and confirmed
✔ Hot water delivery checked at usage points
✔ Customer demonstration completed
✔ Operating instructions explained to the customer
Project Completion
The AO Smith Heat Pump system was successfully commissioned and handed over to the customer. The system is now operating as per manufacturer specifications, providing reliable and energy-efficient hot water while significantly reducing electricity consumption compared to conventional electric geysers.
At Sana Ventures, every installation is completed with professional workmanship, detailed testing, and a commitment to customer satisfaction.
